| DESCRIPTION |
MODEL |
DH-6SM1PW |
| TYPE |
Instant Water Heater (Faucet Control Type) |
| POWER SUPPLY |
AC 230v / 60HZ |
| POWER CONSUMPTION |
6.0 kW |
| WATER STOP SYSTEM |
End Stopping System |
| WATER PRESSURE |
MIN |
0.02 MPa / 0.2 kgf/cm^2 / 2.9 psi |
| MAX |
0.6 MPa / 6.12 kgf/cm^2 / 87.0 psi
|
USABLE FLOW RATE
|
1.8 L/min.
|
| WATER TEMPERATURE CONTROL |
Off / 4.5 kw/ 6.0 kw/ 8.0kw |

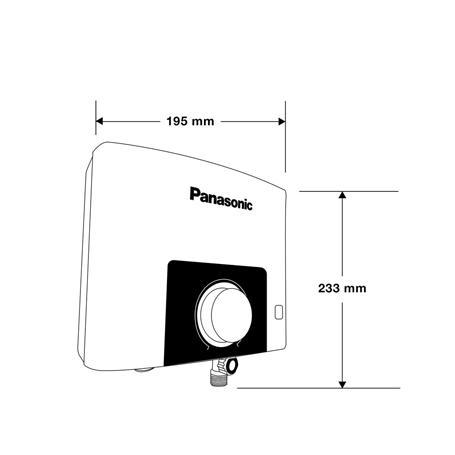

| BODY DIMENSION |
H X W X D MM |
195 x 233 x 112 |
| WEIGHT |
KG |
2.0 kg |
| FEATURES |
SAFETY DEVICE |
Built-in ELCB, Thermal Cut-out |
| SHOWER HEAD |
1-way |
| SEMI-PAUSE |
- |
| OTHER |
Water Filter Unit with Pressure Relief Valve |
